Description

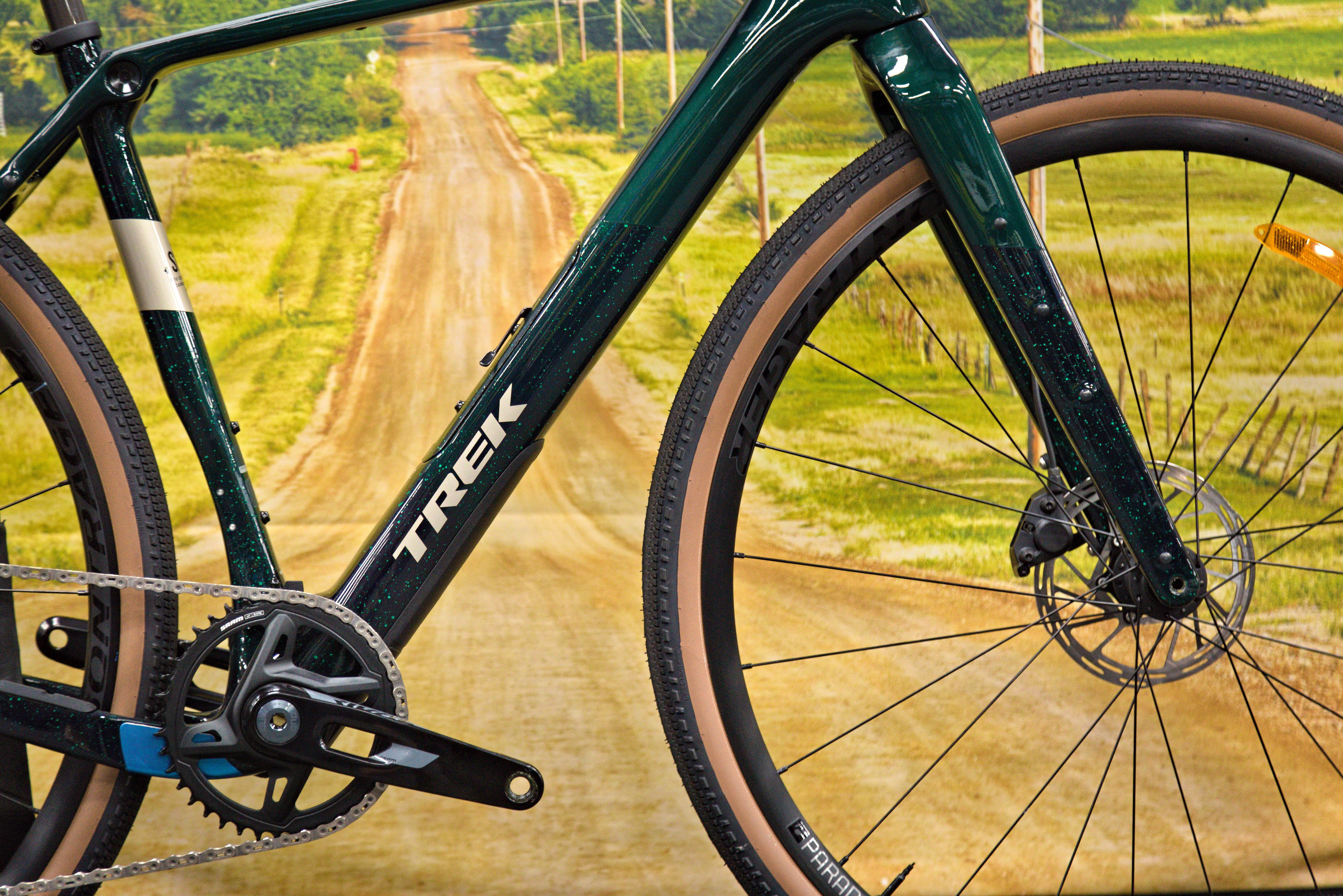

dark green gravel bike Trek Checkpoint SL 6 AXS Gen 3 Gravel BikeTrek Checkpoint SL 6 AXS Gen 3 Gravel Bike Dark Green Ivy Smoke Splatter The Trek Checkpoint SL 6 AXS Gen 3 is built for riders who crave adventure without compromise. With its lightweight OCLV Carbon frame and comfort focused Gravel Endurance geometry, this gravel bike is designed to go the distancewhether youre exploring backroads, tackling all day bikepacking trips, or taking on your local gravel race. Thanks to Treks innovative IsoSpeed
Trek Checkpoint SL 6 AXS Gen 3 Gravel Bike - Dark Green/Ivy Smoke Splatter
The Trek Checkpoint SL 6 AXS Gen 3 is built for riders who crave adventure without compromise. With its lightweight OCLV Carbon frame and comfort-focused Gravel Endurance geometry, this gravel bike is designed to go the distance—whether you’re exploring backroads, tackling all-day bikepacking trips, or taking on your local gravel race.
Thanks to Trek’s innovative IsoSpeed technology, the Checkpoint SL 6 smooths out rough terrain by absorbing road chatter and vibrations, keeping you fresher for longer. Generous tyre clearance (up to 50mm) and multiple mounting points on the frame and fork give you the flexibility to run wide rubber and carry all the gear you need for epic rides.
Shifting is handled by the SRAM Rival AXS eTap 13-speed wireless groupset, offering crisp, reliable performance with the simplicity of electronic precision. Paired with powerful hydraulic disc brakes, you’ll feel confident no matter where the gravel takes you.
Whether it’s your first gravel bike or an upgrade to something truly capable, the Trek Checkpoint SL 6 AXS Gen 3 blends speed, comfort, and versatility—perfect for riders who want to ride further, faster, and with more freedom.
Specification
| Frameset | |
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |
| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Weight | |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| E-System | |
| Battery | SRAM AXS battery pack (with charger) |
| Drivetrain | |
| Shifter | SRAM Rival AXS, 13-speed |
| Rear Derailleur | SRAM Rival XPLR AXS, 46T max cog |
| Crank |
Size: S, XS
SRAM Rival XPLR, 40T, DUB Wide, 165 mm length
Size: M
SRAM Rival XPLR, 40T, DUB Wide, 170 mm length
Size: L, ML
SRAM Rival XPLR, 40T, DUB Wide, 172.5 mm length
Size: XL
SRAM Rival XPLR, 40T, DUB Wide, 175 mm length
|
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Rival XPLR XG-1351, 10-46, 13-speed |
| Chain` | SRAM Rival E1, 12/13-speed |
| Max. Chainring Size | 1x:44 2x: 46/30 |
| Wheels | |
| Front Wheel | Bontrager Paradigm Comp 25 - Tubeless Ready - 25mm Rim Width - 100x12mm Thru Axle |
| Rear Wheel | Bontrager Paradigm Comp 25 - Tubeless Ready - 25mm Rim Width - SRAM XD-R 12-Speed Freehub - 142x12 Thru Axle |
| Front Skewer | Bontrager Switch Chamfered Thru Axle |
| Rear Skewer | Bontrager Switch Chamfered Thru Axle - Removable Lever |
| Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Tubeless | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max. Tyre Size | 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details) |
| Components | |
| Saddle | Verse Short Comp, Steel Rails, 145mm Width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar |
Size: XS & S
Bontrager Elite Gravel - Alloy - 40cm Width
Size: M & M/L
Bontrager Elite Gravel - Alloy - 42cm Width
Size: L
Bontrager Elite Gravel - Alloy - 44cm Width
Size: XL
Bontrager Elite Gravel - Alloy - 46cm Width
|
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem |
Size: XS
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: S, M
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length
Size: L, ML
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
Size: XL
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
|
| Brake Rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Rotor Size | Max brake rotor sizes: 180 mm front and rear |
*Trek reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Sizing
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if yo u were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | Rider Height | Inseam |
| XS | 143 - 158 cm | 67 - 74 cm |
| S | 158 - 164 cm | 74 - 77 cm |
| M | 164 - 177 cm | 77 - 83 cm |
| M/L | 177 - 188 cm | 83 - 88 cm |
| L | 188 - 194 cm | 88 - 91 cm |
| XL | 194 - 203 cm | 91 - 95 cm |
